US SPEC CATA 3.0 TDI V6 VW Touareg 7L / Audi Q7 EGR and Cooler Blanking Kit

Darkside EGR Blanking Kit for US SPEC CATA 3.0 TDI V6 VW Touareg 7L / Audi Q7

This EGR Blanking Kit removes the EGR system on US Spec CATA 3.0 TDI V6 diesel engines.

Please Note: Once blanked off the vehicles ECU will no longer get a signal from the EGR Valve causing the emissions workshop light to appear on the dashboard. We can remove this by reprogramming the EGR software on the ECU.

We supply 2 blanking plates to blank both the exhaust and inlet side. Some people may find it easier just to install 1 or the other depending on the vehicle and other work been carried out.

Disables Problematic EGR

Additional EGR Cooler:

We have found that the US Spec CATA 3.0 TDI's have an additional EGR Cooler, at the moment our kit does not remove this and only removes the primary cooler. We are confident that the secondary EGR cooler can be left in place and the EGR pipes are able to be removed from the cooler. Coolant will still flow freely however if you wish to remove the secondary cooler you will need to find a suitable joiner to do so.

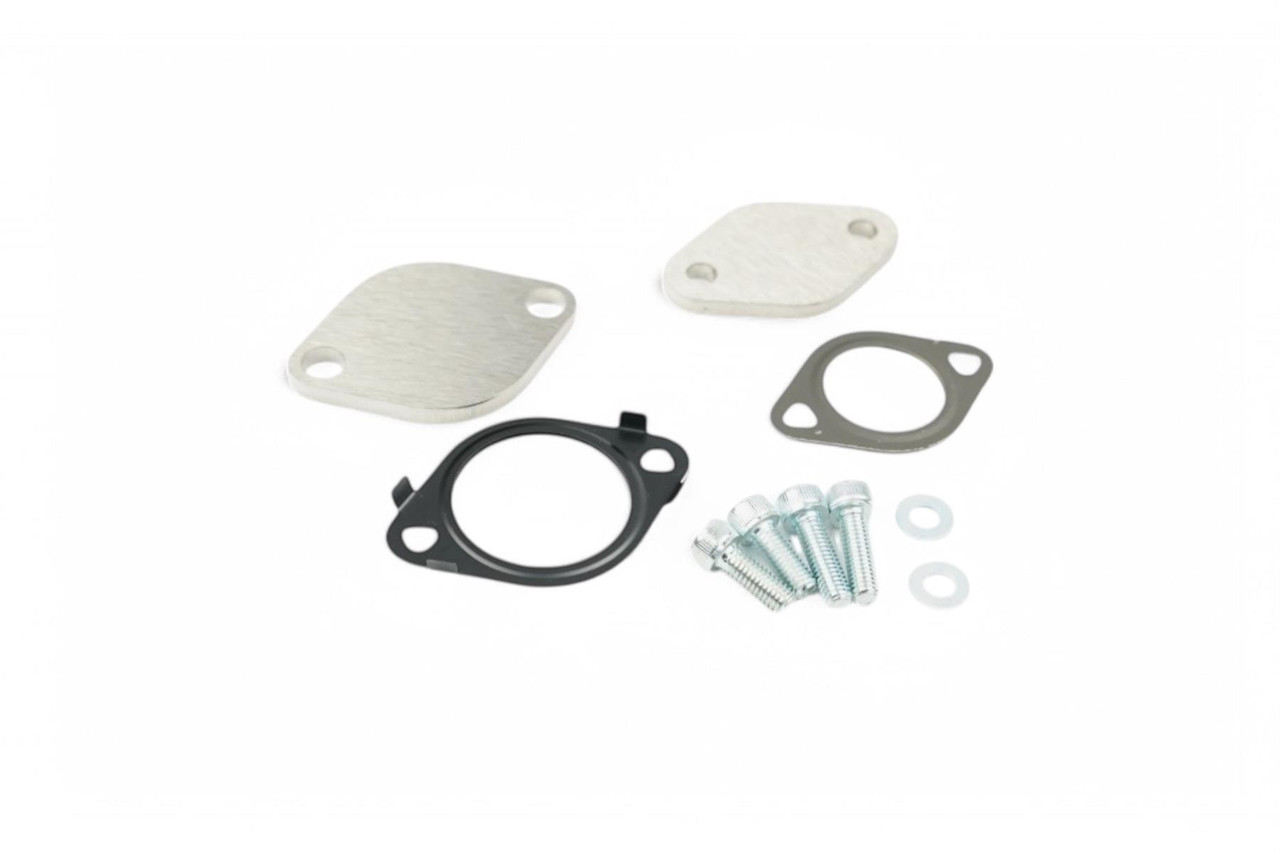

This Kit Consists of:

2x EGR Blanking Plates
2x EGR Pipe / Blank Gaskets
4x Bolts

CATA DPF Delete Downpipe can be found here:

https://www.darksidedevelopments.co.uk/products/darkside-2-5-dpf-delete-downpipe-for-us-spec-3-0-tdi-audi-q7-vw-touareg.html

CATA Primary CAT Delete Downpipe:

https://www.darksidedevelopments.co.uk/products/us-spec-cata-3-0-tdi-v6-vw-touareg-7l-audi-q7-primary-cat-delete-downpipe.html

This Kit will fit Vehicles with the following Engine Codes:

Audi Q7 - CATA (224)
VW Touareg - CATA (224)

Replaces Genuine EGR Cooler Part Number:

059131513G - 059131513 G - 059 131 513 G
059131515AD - 059131515 AD - 059 131 515 AD
059131515BP - 059131515 BP - 059 131 515 BP
059131515CB - 059131515 CB - 059 131 515 CB
059131515CC - 059131515 CC - 059 131 515 CC
059131515D - 059131515 D - 059 131 515 D
059131515ET - 059131515 ET - 059 131 515 ET
059131515M - 059131515 M - 059 131 515 M
059131515R - 059131515 R - 059 131 515 R
059131515AE - 059131515 AE - 059 131 515 AE
059131515FA - 059131515 FA - 059 131 515 FA

DARKSIDE DEVELOPMENTS ACCEPTS NO RESPONSIBILITY FOR THE USE OF THIS PART ON THE PUBLIC HIGHWAY WHERE REMOVAL OF EMISSIONS CONTROLS IS PROHIBITED. IT IS THE CUSTOMERS RESPONSIBILITY TO ENSURE THEY COMPLY WITH RULES AND LAWS RELATING TO THEIR HOME COUNTRY
